Anchor Point Hardware

Anchor Point Hardware is sold separately from our Shade Sails because every installation is unique!

The Anchor Hardware you choose depends on what type of material will serve as a support structure/post for your Shade Sail. We always include the tensioning hardware that is required to attach your sails to your Anchor Hardware, but because every installation is unique Anchor Hardware is not included and must be purchased separately.

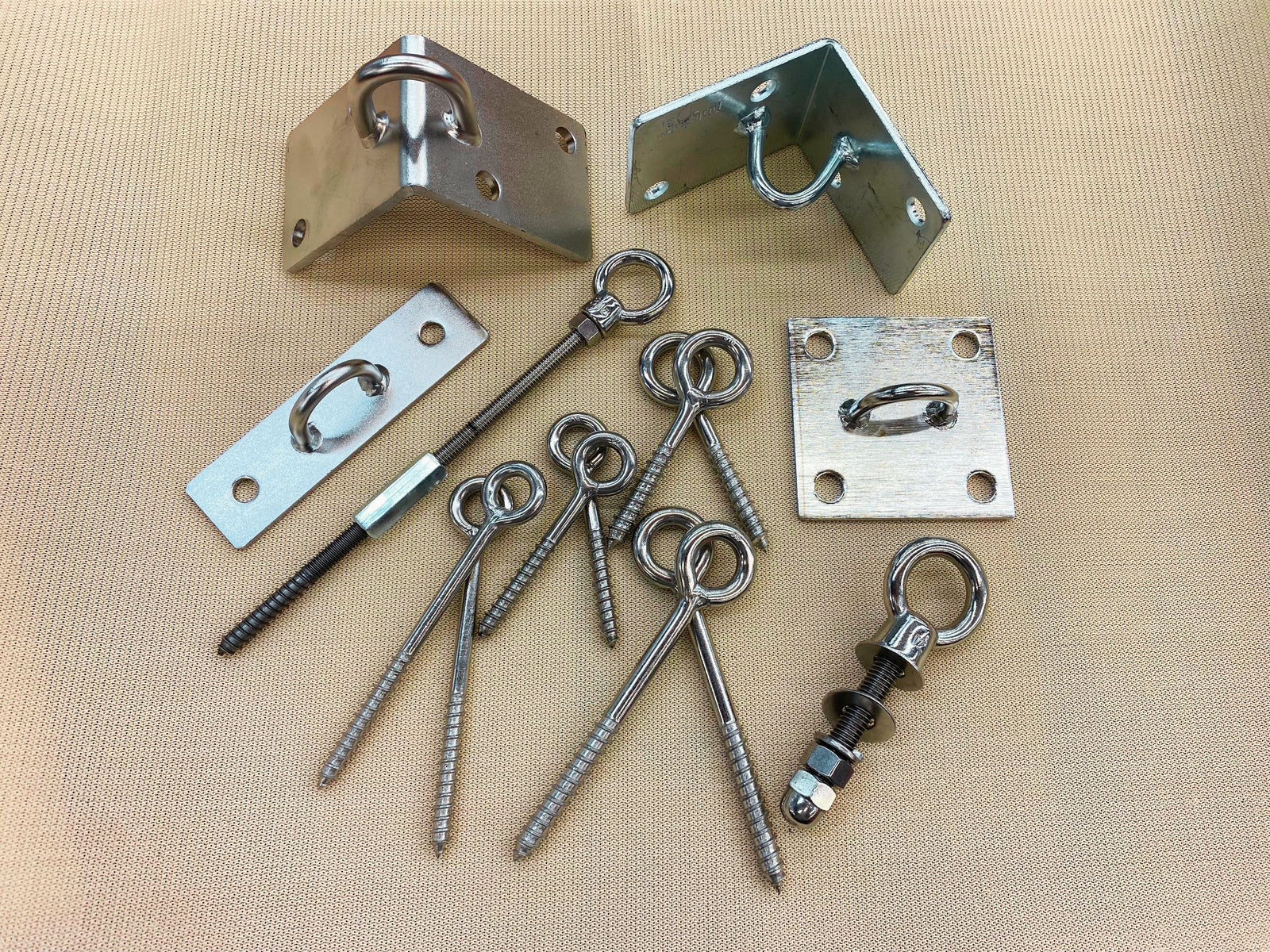

You can explore the various types of Anchor Hardware below. Each piece has been individually sourced from around the world and specially chosen to perform exceptionally under all weather conditions for years to come.

All of our products are quite simply the best you can buy.

  • 316 Marine Grade Stainless Steel
  • High load rated
  • Range of sizes
  • Hand-picked for exceptional design and durability
  • Accommodate a wide range of installations

14 products
tensioning hardware

What's Included?

All of the necessary Tensioning Hardware is included with the purchase of every Shade Sails Canada product. This includes our Marine Grade Stainless Steel perimeter cabling, cable clamps, turnbuckles and shackles. This differs from Anchoring Hardware - which we cover in the next tab!

Shipping is also included for all orders over $500 CAD, and every Shade Sails Canada product is shipped in its own winter storage bag.

Frequently Asked Questions

What is the appropriate hardware per material type?

This is one of our most frequently asked questions! There are so many different applications that various hardware can be used for and still be very effective. We’ve created this Hardware video to provide an overview of what hardware you can expect with your products, what sorts of hardware we provide as anchors to your Shade Sails Canada products as well as the various scenarios and applications that our hardware can be used in.

Why do we use 316 Marine Grade Stainless Steel?

316 Marine Grade Stainless Steel has excellent resistance to a wide range of corrosive environments, making it a suitable choice for use in marine applications. It is a hardy and strong material that is resistant to wear and tear, which makes it an excellent choice for use in marine equipment and structures. 316 Marine Grade Stainless Steel is also non-magnetic, which is an important property in certain applications where magnetism can be problematic. It has excellent high-temperature resistance, making it a suitable choice for use in applications that are exposed to high temperatures. As it is highly resistant to corrosion, 316 Marine Grade Stainless Steel does not require frequent maintenance or replacement, which can save costs and prolong the life of the equipment.

What if my hardware fails?

In the very rare event that your hardware fails, evaluate which piece of hardware has failed and how that affects your Shading system. Make sure you contact Shade Sails Canada with photos of the failed hardware and one of our friendly expert staff members will be able to assist you immediately. We always have our customers' satisfaction top of mind and always try to make our systems as simple and user-friendly as possible without diminishing the quality of our craftsmanship and overall product quality. Safety is a big part of what we focus on, so in most cases, we would recommend you remove your fabric from its hardware to avoid further possible damage or injury.

How do I know my hardware is deep enough?

This is a great question, and very important in ensuring that your anchor hardware has enough substance to hold your product in place as well as counteract the tension and forces that are further applied to that anchor point. This ‘depth’ also varies when we compare wooden post applications to steel post applications.

With a wooden post or truss, we would need at least 3” of substance to attach one of our Welded Screw Eyes. If you have access to the back of the post, truss, or pergola that you are looking at anchoring to, you can use one of our Through Bolts with a Welded Eye. This piece of hardware allows support from the back using a lock washer, lock nut and acorn nut.

With steel posts, wall thickness is one of the most important factors when determining the strength of the structure/post. We recommend a wall thickness greater than or equal to 0.25” to avoid any future deflection as a result of the tension in our products. Through Bolts with Welded Eyes are our most commonly used hardware in steel applications.

I live on the ocean. Is my hardware going to rust?

As long as you use hardware ordered from Shade Sails Canada to anchor and attach your product, your hardware will not rust. We use high-quality 316 Marine-Grade Stainless Steel, which is an extremely durable and corrosion-resistant metal. 316 Stainless Steel is used to protect ships from the harsh elements of the ocean. If you live oceanside, there is no better or more reliable metal to use than our 316 Marine-Grade Stainless Steel hardware.

What is the difference between Attachment Hardware and Anchor Hardware?

"Attachment Hardware" refers only to the marine grade stainless steel that we include in your Shade Sails Canada product in the production line. Turnbuckles, d-shackles, and perimeter cabling are all included with your product, but should you need spares or want to purchase more of our high-quality hardware, we have attachment hardware for sale. Shop Now

"Anchor Hardware" refers to the hardware that you will anchor to your surface, wall or post to attach your Shade Sails Canada product. The type of hardware you use to anchor your product depends on a variety of factors, namely: the type of material you’re anchoring to, the depth your anchors can go and the size of the product you are attaching to those anchors. All of our Anchor Hardware products are available to purchase in our store each with their product description for you to best match your application to our hardware. Shop now.

What’s so special about stainless steel hardware?

Stainless steel hardware is special because it is highly resistant to corrosion and staining, and can maintain its strength and durability at high temperatures. It is also non-magnetic and has a sleek, modern appearance. Additionally, stainless steel is easily recyclable, making it an environmentally friendly option for various applications.

My turnbuckle seized. What should I do?

A seized turnbuckle can be treated by using penetrating oil, such as the Turnbuckle Grease we provide with every product we sell, to loosen the corrosion or rust that is causing the seizing. Apply the grease to the turnbuckle thread before re-tensioning and allow it to sit for a few minutes. You can also try to use a wrench or pliers to gently turn the turnbuckle back and forth, applying pressure as needed. If the turnbuckle still does not turn, you may need to replace it.
